Minimum Free Space Oven (ASTM & ISO)

Minimum Free Space oven is utilized for drying process which features a compact heated chamber that provides the lowest practical volume, or minimum free space.

The MFSO-ISO operates with a regulated flow of moisture free nitrogen gas which removes the moisture released by the coal at 105 °C as per BS 1016-104.2:1991, BS ISO 687:2010 & BS ISO 11722:2013.

The MFSO-ASTM operates with a regulated flow of air as per ASTM D3173-11.

Standard Features

Optional Features

Downloads

Maximum Temperature: up to 210 °C.
Maximum Continuous Temperature: up to 210 °C.
Chamber dimensions (mm): 43 x 195 x 300 (H x W x D), 2.5Litres.
The ovens have an aluminum chamber that resists oxidation and corrosion, resulting in excellent temperature uniformity over the working volume.
Before accessing the front of the work chamber, the nitrogen or air flow passes through a preheating chamber and is adjustable via a flow meter mounted on the control panel.
2 Flow meters to monitor gas flow of Nitrogen & Chamber seal integrity in MFSO-ISO.
2 Flow meters to monitor gas flow of Air & Chamber seal integrity in MFSO-ASTM.
Aluminum loading tray is supplied as standard accessory.

Over temperature protection.
Multi segment, multi program storage Controllers.
Silica (or) Alumina crucibles with well-fitted lids.
Vacuum desiccator with gas inlet & gas outlet.

Models

Plastometer

PF-12

Dilatometer

DF-4

Minimum Free Space Oven

(ASTM & ISO)

Volatile Matter Furnace

VMF/ ASTM

Volatile Matter Furnace

VMF/ISO

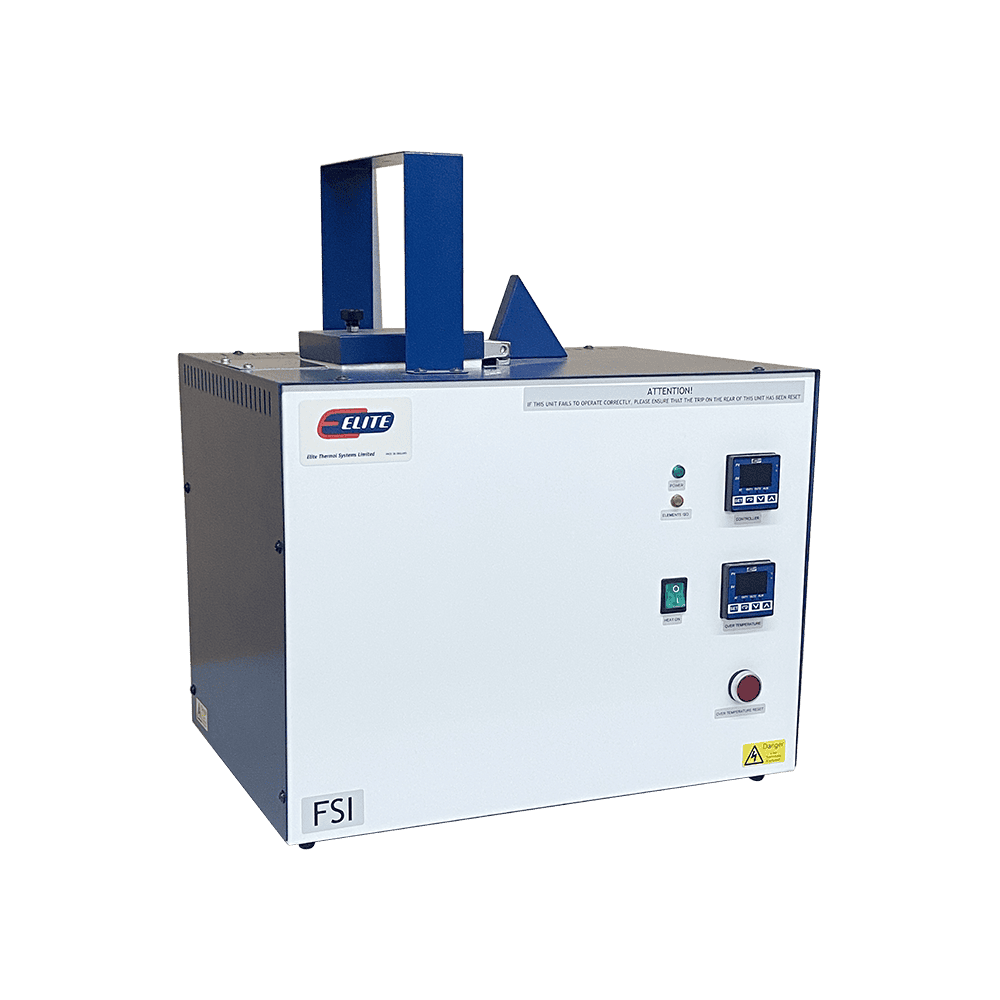

Free Swelling Index Furnace
