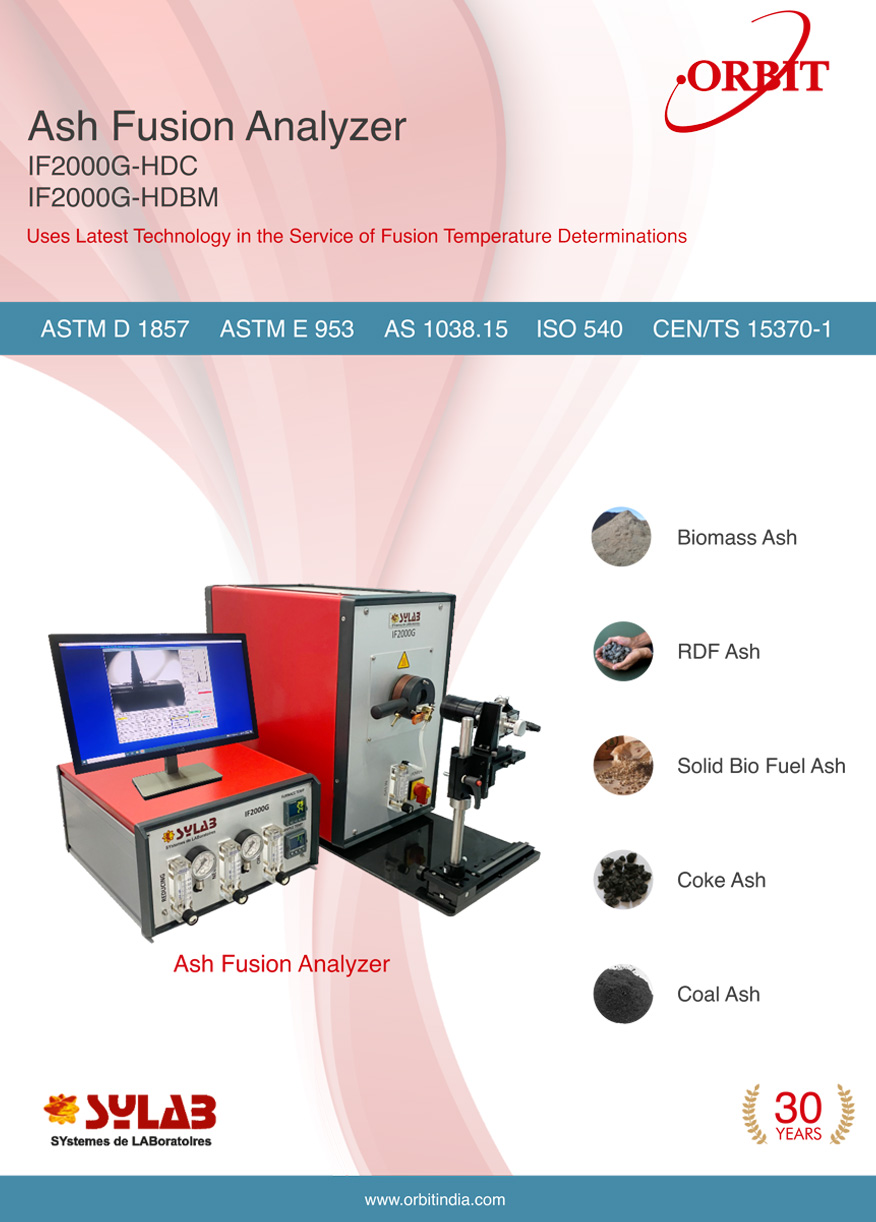

Ash Fusion Analyzer

IF2000G-HDC

Overview
IF2000G-HDC is an automatic Ash Fusion Analyzer for the determination of the ash fusion points by the mean of image analysis. The determination uses the most modern technology for monitoring computing and storing results and curves obtained during the test according to the National and International test methods. Once the sample is introduced into the furnace, the operator is free until the end of the analysis. The results and the curves are automatically stored in a DATABASE and automatic reports are generated.
Fusion Points
IT: Initial Deformation temperature
ST: Softening/ Sphere temperature
HT: Hemi Sphere Temperature
FT: Fluid / Flow temperature
Maximum number of samples per analysis
6 samples
Sample type
Cube, Pyramid, Truncated Pyramid or cylinder
Sample Shape Identification
Automatic
Furnace Specifications
Furnace Temperature range
Ambient to 1300°C
Temperature ramp Rate
Programmable from 1°C per minute to 12°C per minute
Temperature Precision
+/- 5°C as per Standard test method at 1064°C (by using 99.98% pure gold wire)
Number of heating elements
4 Heating elements
Camera
Camera Image Resolution
1280x 1024 Pixel
Image collection
Up to 30 frames/min
Gas Requirements
Purge Air
Nitrogen, 99.5%
Reducing Mode
CO-CO2 premixed gas (50-50 ratio) (or)
H2-CO2 Premixed gas (50-50 ratio) (or)
Capable to accept individual gases (Analyzer as inbuilt gas mixing facility for the required ratio)
Oxidizing Mode
Either by inbuilt moisture free air pump (or) by using with external Air compressor
Electrical Requirement
220 V to 240 V, 5/60 Hz, single phase, 18 A
Description
Ash Fusion Analyzer, IF2000G-HDC

IF2000G-HDC is an automatic Ash Fusion Analyzer for the determination of the ash fusion points by the mean of image analysis. The determination uses the most modern technology for monitoring computing and storing results and curves obtained during the test according to the National and International test methods.

Once the sample is introduced into the furnace, the operator is free until the end of the analysis. The results and the curves are automatically stored in a DATABASE and automatic reports are generated. The analyzer is capable to run 6 ash samples, all the dimensions, rounding, form factor, and volume are individually computed and stored. Each sample picture is individually stored and the whole film of the fusion is also 1°C by 1°C.

Models
  • Ash Fusion Analyzer, HT; IF2000G-HDBM
Cat. No: 22-520000
  • Ash Fusion Analyzer; IF2000G-HDC
Cat. No: 22-510000
