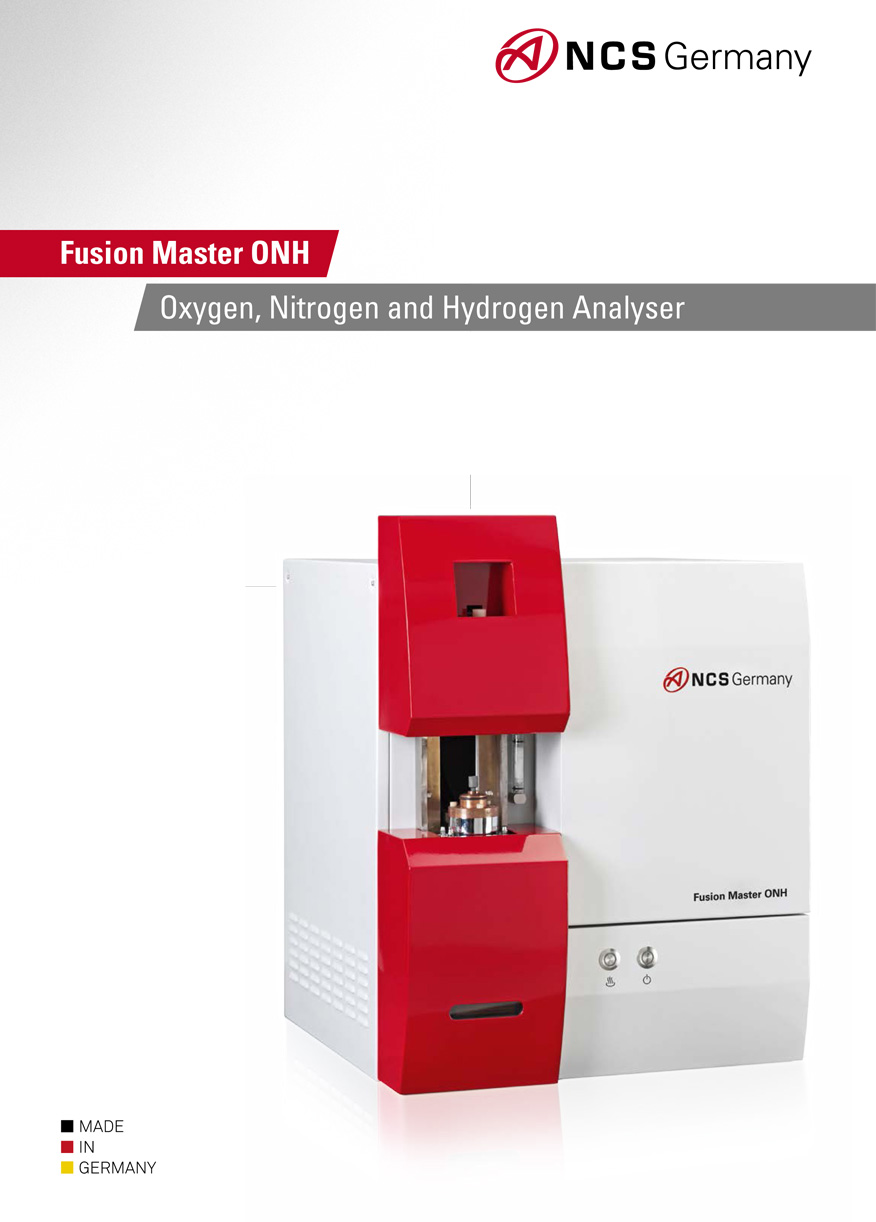

Fusion Master ONH Analyzer

Overview

The sample, filled in a graphite crucible, will be fused in the electrode furnace. Nitrogen and hydrogen gases are being released from the sample into the carrier gas and the oxygen is reacting with the carbon of the graphite crucible to CO.The CO is oxidised to CO2 afterwards.

The analytical gas will then be led to the thermal conductivity cell for the determination of nitrogen and hydrogen and afterwards to the infrared cell for the determination of oxygen.

From the received data of the detectors the PC is calculating the concentrations of oxygen, nitrogen and hydrogen.

Furnace
PC controlled electrode furnace.
Power: 10 kVA Maximum.
Power supply
230 VAC (+/- 10 % ), 50/60 Hz,16 A , 3.0 kVA max
Detection method
Solid state infrared absorption with up to 2 independent detector units for oxygen and a thermal conductivity detector for nitrogen and hydrogen.
Typical sample weight / Analysis time
1g / 90 s
Measuring Range
Oxygen : Low range-0 ppm - 0.01 % and High range - 0.01 % - 2 %
Nitrogen : Low range-0 ppm - 0.01 % and High range-0.01 % - 2 %
*Using sample weight of 1000 mg, with reduced sample weight up to 100 %
Hydrogen : Low range- 0 ppm - 0.005 % and High range-0 % - 0.5 %
Sensitivity / Precision
Oxygen : 0.1ppm/± 0.3ppm
Nitrogen : 0.1ppm/± 0.3 ppm
Hydrogen : 0.01 ppm /± 0.05 ppm
Reagents
Anhydrous magnesium perchlorate, sodium hydroxide, rare earth copper oxide
Gas connection
Helium and Nitrogen 5.0, 2 bar, compressed air 6 bar (min, oil free)
Power supply
400/230 VAC (+/-10 %), 50/60 Hz, 32 A, 10 kVA max.
Dimensions
W, H, D: 670 mm, 870 mm, 800 mm, weight: 165 kg
For operation needed
PC and monitor (included in the scope of supply), balance (resolution 0.0001g)
Description
Fusion Master ONH Analyzer

The sample, filled in a graphite crucible, will be fused in the electrode furnace. Nitrogen and hydrogen gases are being released from the sample into the carrier gas and the oxygen is reacting with the carbon of the graphite crucible to CO.The CO is oxidised to CO2 afterwards.

The analytical gas will then be led to the thermal conductivity cell for the determination of nitrogen and hydrogen and afterwards to the infrared cell for the determination of oxygen.

From the received data of the detectors the PC is calculating the concentrations of oxygen, nitrogen and hydrogen.

Models
  • Analyser-Set Fusion Master ONH (1×0)Elemental Analyzer, Oxygen Single detector
Cat. No: FM 1
  • Analyser-Set Fusion Master ONH (2×0)
    Elemental Analyzer, Oxygen Dual detector
Cat. No: 20- FM 2
  • Analyser-Set Fusion Master ONH (2xN)
    Elemental Analyzer, Nitrogen Dual detector
Cat. No: 20-FM 3
  • Analyser-Set Fusion Master ONH (2xH)
    Elemental Analyzer, Hydrogen Dual detector
Cat. No: 20- FM 4
  • Analyser-Set Fusion Master ONH (1xO + 2xN)
    Elemental Analyzer, Oxygen Single Detector and Nitrogen Dual detector
Cat. No: FM 5
  • Analyser-Set Fusion Master ONH (1xO + 2xH)
    Elemental Analyzer, Oxygen Single detector and Hydrogen Dual detector
Cat. No: FM 6
  • Analyser-Set Fusion Master ONH (2xO + 2xN)
    Elemental Analyzer, Oxygen and Nitrogen Dual detector
Cat. No: FM 7
  • Analyser-Set Fusion Master ONH (2xO) + 2xH)
    Elemental Analyzer, Oxygen and Hydrogen Dual detector
Cat. No: FM 8
  • Analyser-Set Fusion Master ONH (2xN + 2xH)
    Elemental Analyzer, Nitrogen & Hydrogen Dual detector
Cat. No: FM 9
  • Analyser-Set Fusion Master ONH (1×0+2xN+2xH)
    Elemental Analyzer, Oxygen One detector, Nitrogen & Hydrogen Dual detector
Cat. No: FM 10
