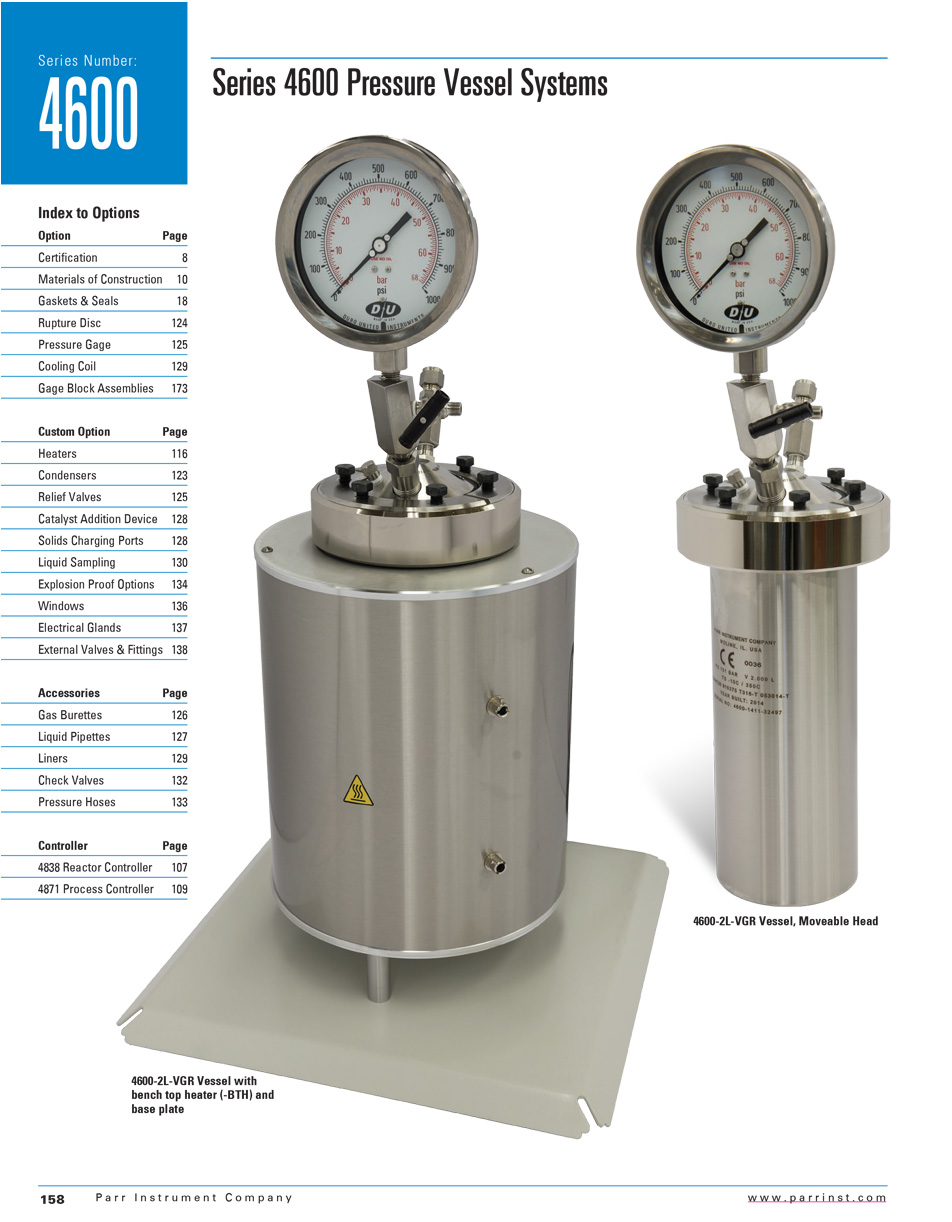

Series 4600 1 & 2 L General Purpose HP Reactor

Overview
The Series 4600, 1.0 and 2.0 L Vessels are the largest of the Parr Vessels that can be handled on a bench top. These reactors are available with an FKM O-ring seal for operating temperatures to 225 °C, and FFKM O-ring for temperatures to 300 °C, or with a flat, PTFE gasket for operating temperatures up to 350 °C maximum. An optional HP (High Pressure) flat gasket version has been added for maximum allowable working pressure of 2900 psi (200 bar) at 350 °C. Both fixed head and moveable vessel designs are available.
Type
High Pressure Vessel
Volume
1000 ml and 2000 ml
Maximum Pressure (MAWP)
1900 psi (131 bar) / 2900 psi (200 bar)
Maximum Temperature
350 deg C
Mounting style
Moveable (or) Fixed head
Closure
Split Ring
Temperature Measurement
Fixed Thermocouple (or) Thermowell for special alloys
Maximum Head openings
Seven (depending on opening size and required fittings)
Description

Series 4600 1 & 2 L General Purpose HP Reactor

The Series 4600, 1.0 and 2.0 L Vessels are the largest of the Parr Vessels that can be handled on a bench top. These reactors are available with an FKM O-ring seal for operating temperatures to 225 °C, and FFKM O-ring for temperatures to 300 °C, or with a flat, PTFE gasket for operating temperatures up to 350 °C maximum. An optional HP (High Pressure) flat gasket version has been added for maximum allowable working pressure of 2900 psi (200 bar) at 350 °C. Both fixed head and moveable vessel designs are available.

An optional pneumatic lift is available for the heavier 2 liter cylinder and heater. It should be noted, however, that the 2 liter, fixed head model is tall and may not be convenient to operate on a standard height bench top. We recommend using a floor stand. With their larger diameter, these mid-size reactors have sufficient space for special modifications, such as an internal cooling coil, bottom drain valve (not on 2 liter bench top), ball valve for a solids charging port, catalyst addition devices, condensers, electrical feed-throughs and more.
