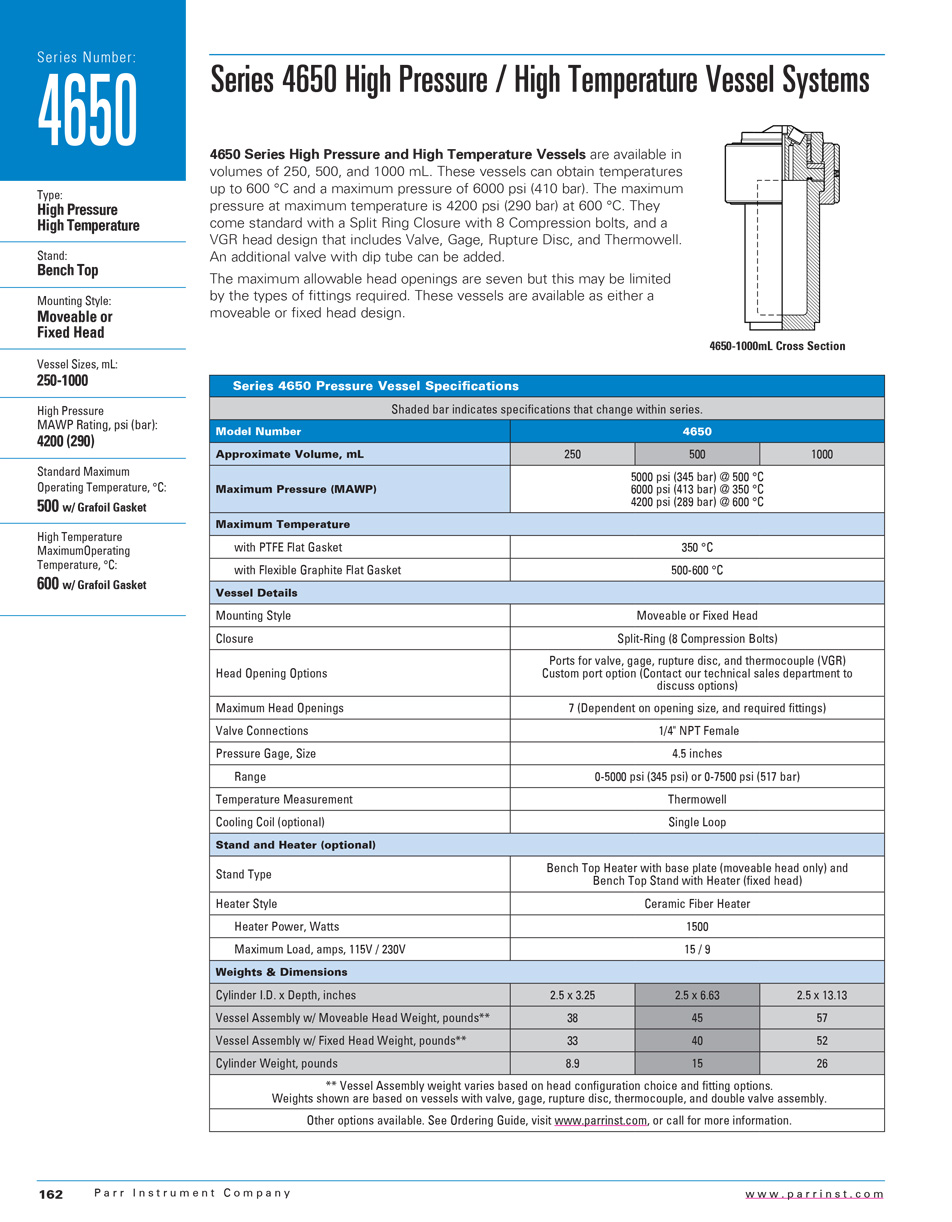

Series 4650 250-1000 ml HP/HT Pressure Vessel

Overview
4650 Series High Pressure and High Temperature Vessels are available in volumes of 250, 500, and 1000 mL. These vessels can obtain temperatures up to 600 °C and a maximum pressure of 6000 psi (410 bar). The maximum pressure at maximum temperature is 4200 psi (290 bar) at 600 °C. They come standard with a Split Ring Closure with 8 Cap Screws, and a VGR-T head design that includes Valve, Gage, Rupture Disc, and Thermowell. An additional valve with dip tube can be added.The maximum allowable head openings are seven but this may be limited by the types of fittings required. These vessels are available as either a movable or fixed head design.
Type
General Purpose Pressure vessels
Volume
22 and 45 ml
Maximum Pressure (MAWP)
1700 psi (115 bar0
Maximum Temperature
300 deg C
Mounting style
Moveable only
Closure
Screw Cap-Steel
Head Seal
Flat Gasket
Maximum Head openings
ONE (depending on opening size and required fittings)
Description

Series 4650 250-1000 ml HP/HT Pressure Vessel

4650 Series High Pressure and High Temperature Vessels are available in volumes of 250, 500, and 1000 mL. These vessels can obtain temperatures up to 600 °C and a maximum pressure of 6000 psi (410 bar). The maximum pressure at maximum temperature is 4200 psi (290 bar) at 600 °C. They come standard with a Split Ring Closure with 8 Cap Screws, and a VGR-T head design that includes Valve, Gage, Rupture Disc, and Thermowell. An additional valve with dip tube can be added.The maximum allowable head openings are seven but this may be limited by the types of fittings required. These vessels are available as either a movable or fixed head design.
