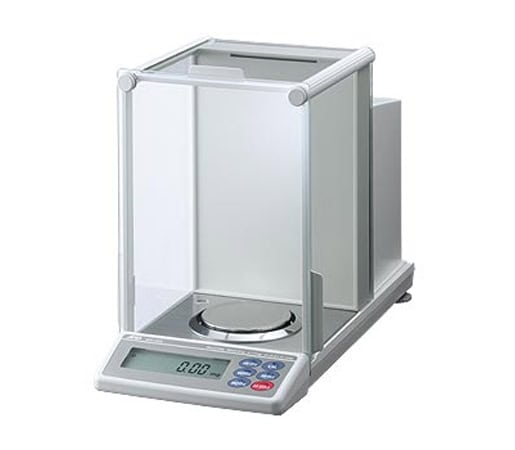

GH Series

A&D logo
Overview
  • Semi-micro, 0.01 mg readability up to 101 g (GH-252)
  • Adjustable (manual or automatic) response characteristics to help cope with the effect of drafts and vibrations
  • Automatic self calibration to maintain accuracy under temperature changes
  • Anti-static glass breeze break with a thin evaporated metal coating
  • Multiple weighing units: g, mg, oz, ozt, ct, mom, dwt, grain, specific gravity (either tael or tola can be added upon request)
  • GLP/GMP/GCP/ISO compliant output
  • Clock and calendar function
  • Data memory function
  • Counting mode with the Automatic Counting Accuracy Improvement (ACAI) function
  • Percent mode function
  • Auto power on function
  • Underhook function
  • Density determination function and an optional density determination kit
  • Windows Communication Tools software (WinCT) on CD-ROM
ModelGH-202GH-252GH-120GH-200GH-300
Capacity51 g / 220 g101 g / 250 g120 g220 g320 g
Readability0.01 mg / 0.1 mg0.1 mg
Repeatability (Standard deviation)0.02 mg / 0.1 mg0.03 mg / 0.1 mg0.1 mg0.2 mg
Linearity±0.03 mg / ±0.2 mg±0.1 mg / ±0.2 mg±0.2 mg±0.3 mg
Sensitivity drift (10 °C to 30 °C)±2 ppm/°C (when automatic self calibration is not used)
Weighing panØ90 mm
Description

External Input/Output

  • RS-232C interface
  • Quick USB interface (optional)
  • Ethernet (TCP/IP) interface (optional)

Options

  • GH-02: Quick USB interface with cable
  • GH-08: Ethernet (TCP/IP) interface
  • GH-02 and GH-08 cannot be used at the same time.

Accessories

  • AD-1653 : Density determination Kit
  • AD-1671 : Anti-vibration table for balances
  • AD-1672 : Tabletop breeze break
  • AD-1682 : Rechargeable battery unit
  • AD-1683 : Static eliminator
  • AD-1684A : Electrostatic field meter
  • AD-1687 : Weighing environment logger
  • AD-1688 : Weighing data logger
  • AD-1689 : Tweezers for calibration weight
  • AD-8118C : Universal printer
  • AD-8129TH : Compact printer
  • AD-8526 : RS-232C/Ethernet (TCP/IP) converter
  • AD-8527 : Quick USB adapter
  • AD-8920A : Remote display
  • AD-8922A : Remote controller
  • AX-HOLDER-SET : Sample Cup Holder Set
  • AX-USB-9P : RS-232C/USB converter with cable
  • AX-KO2466-200 : RS-232C cable (9P-9P)
  • AX-SW128 : Foot switch
  • AX-T-314A-S : External key plug
