Overview
The Series 4680 High Pressure/High Temperature Vessels are available with either a 1.0 L or 1.8 L capacity. These vessels can obtain temperatures up to 600 °C and a maximum pressure of 6000 psi (413 bar). The maximum pressure at maximum temperature is 4200 psi (289 bar) at 600 °C. A Split Ring closure with 12 Compression Bolts secures the head which allows a maximum of 8 openings. The Series 4680 Vessels can be configured with either a fixed head on a floor stand or as a moveable head vessel on a moveable cart. The fixed head versions allow the head (and the connections made to it) to remain in place while the cylinder and heater are lowered with the aid of the included pneumatic lift system.
Type
Stand
Floor Cart with heater (moveable head only)
Floor Stand with Pneumatic Lift and heater (fixed head)
Mounting Style
Moveable or Fixed Head
Vessel Sizes, ml
1000-1800
Pressure MAWP Rating, psi (bar)
5000 psi (345 bar) @ 500 °C
6000 psi (413 bar) @ 350 °C
4200 psi(289 bar) @ 600 °C
Maximum operating temperature, deg C
350 °C with PTFE Flat Gasket
500 – 600 °C with Flexible Graphite Flat Gasket
Description

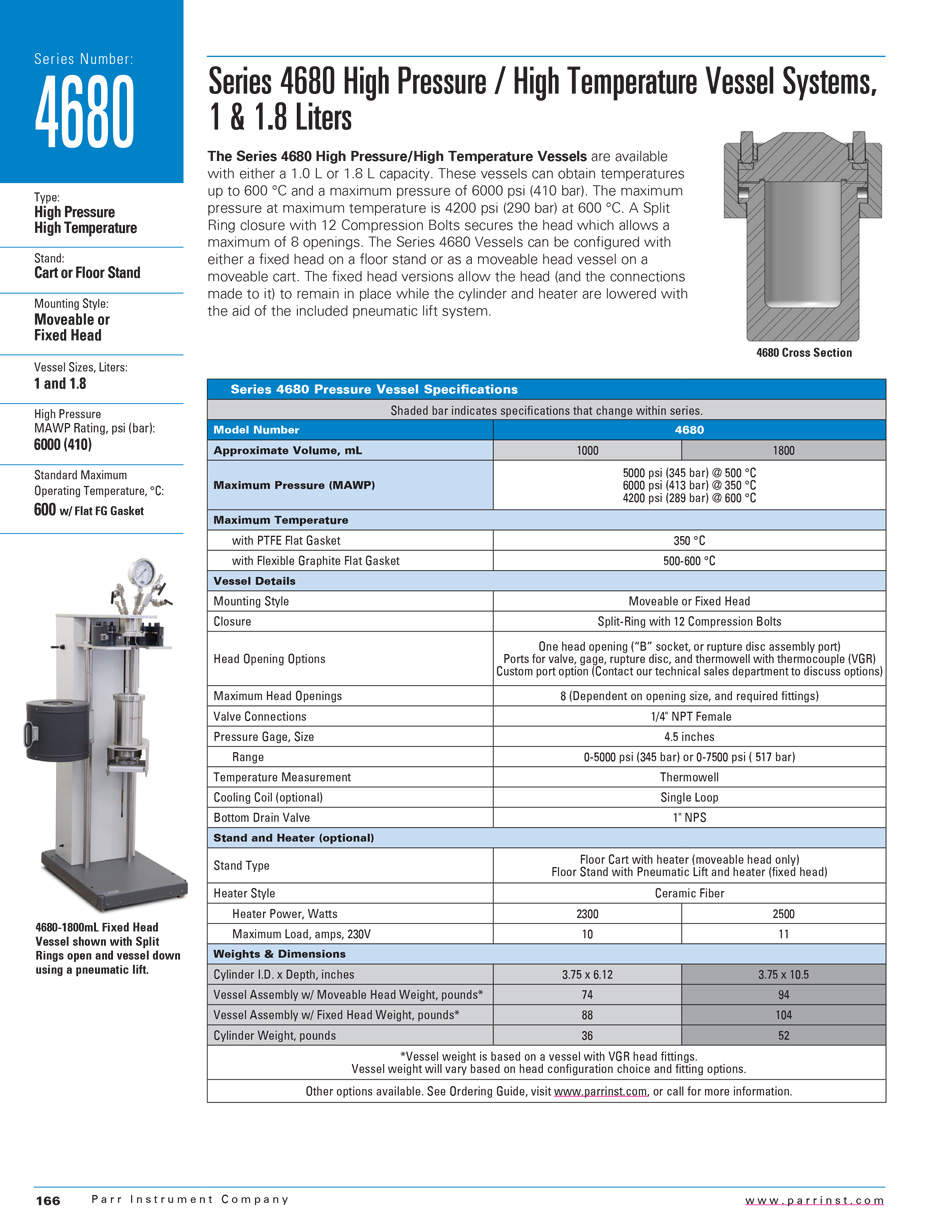

Series 4680 1&1.8 L HP/HT Reactor

The Series 4680 High Pressure/High Temperature Vessels are available with either a 1.0 L or 1.8 L capacity. These vessels can obtain temperatures up to 600 °C and a maximum pressure of 6000 psi (413 bar). The maximum pressure at maximum temperature is 4200 psi (289 bar) at 600 °C. A Split Ring closure with 12 Compression Bolts secures the head which allows a maximum of 8 openings. The Series 4680 Vessels can be configured with either a fixed head on a floor stand or as a moveable head vessel on a moveable cart. The fixed head versions allow the head (and the connections made to it) to remain in place while the cylinder and heater are lowered with the aid of the included pneumatic lift system.

Overview
The Series 4680 High Pressure/High Temperature Vessels are available in either a 1.0 L or 1.8 L capacity. The maximum temperature for these vessels is 600 °C and at that temperature can be run at a maximum pressure of 4200 psi (290 bar). Or, run these vessels at 350 °C and obtain a maximum pressure of 6000 psi (410 bar). A Split Ring closure with 12 Cap Screws secures the head which allows a maximum of 8 openings. The Series 4680 Vessels can be configured with either a fixed head on a floor stand or as a moveable head vessel on a moveable cart. An optional pneumatic lift is available on the floor stand model.
Description

Series 4680 1&1.8 L HP/HT Reactor

The Series 4680 High Pressure/High Temperature Vessels are available in either a 1.0 L or 1.8 L capacity. The maximum temperature for these vessels is 600 °C and at that temperature can be run at a maximum pressure of 4200 psi (290 bar). Or, run these vessels at 350 °C and obtain a maximum pressure of 6000 psi (410 bar). A Split Ring closure with 12 Cap Screws secures the head which allows a maximum of 8 openings. The Series 4680 Vessels can be configured with either a fixed head on a floor stand or as a moveable head vessel on a moveable cart. An optional pneumatic lift is available on the floor stand model.
