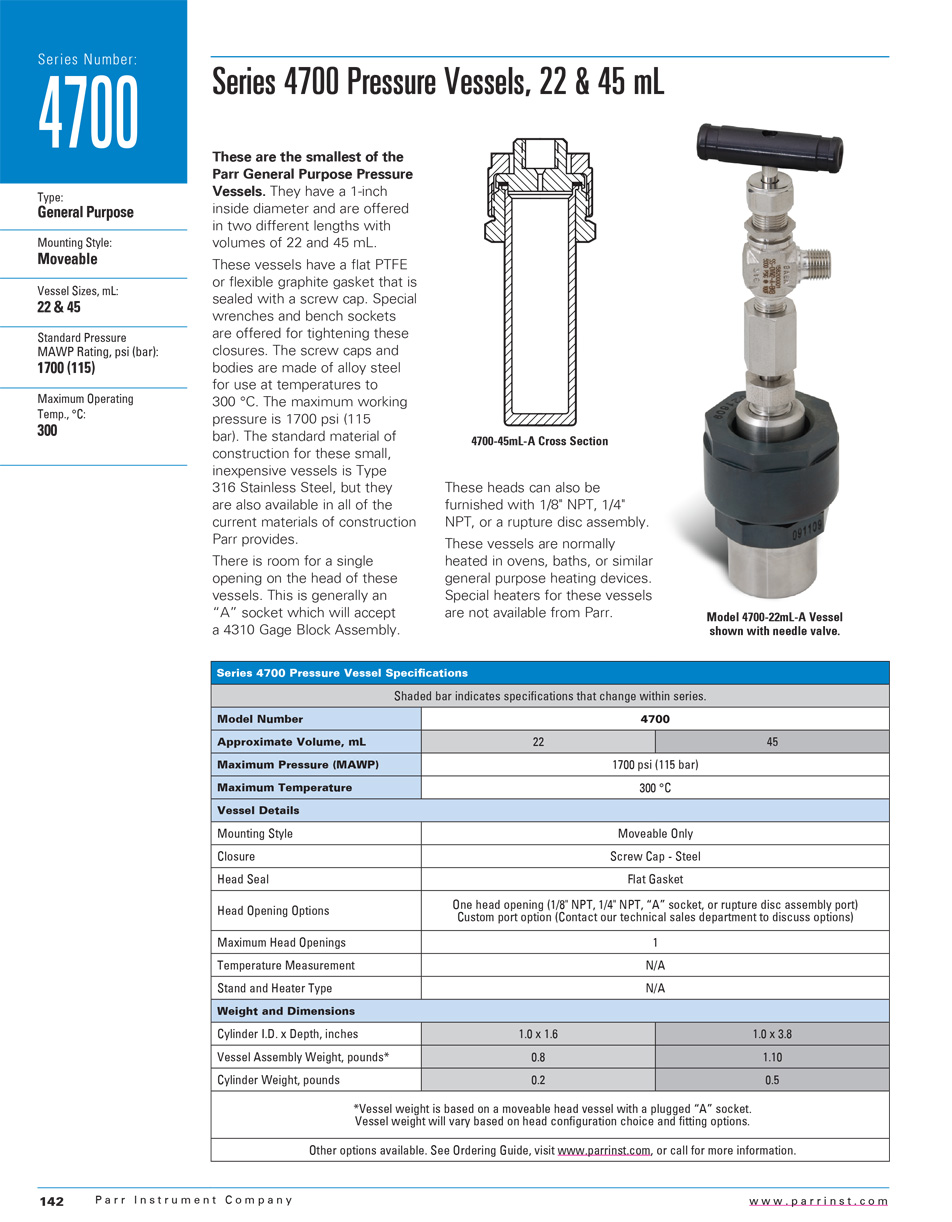

Series 4700 22-45 ml General purpose pressure vessel

Overview
These are the smallest of the Parr General Purpose Pressure Vessels. They have a 1-inch inside diameter and are offered in two different lengths with volumes of 22 and 45 mL. These vessels have a flat PTFE gasket or flexible graphite that is sealed with a screw cap. Special wrenches and bench sockets are offered for tightening these closures. The screw caps and bodies are made of alloy steel for use at temperatures to 300 °C. The maximum working pressure is 1700 psi (115 bar). The standard material of construction for these small, inexpensive vessels is Type 316 Stainless Steel, but they are also available in all of the current materials of construction Parr provides.
Type
General Purpose Pressure vessels
Volume
22 and 45 ml
Maximum Pressure (MAWP)
1700 psi (115 bar0
Maximum Temperature
300 deg C
Mounting style
Moveable only
Closure
Screw Cap-Steel
Head Seal
Flat Gasket
Maximum Head openings
ONE (depending on opening size and required fittings)
Description

Series 4700 22-45 ml General purpose pressure vessel

These are the smallest of the Parr General Purpose Pressure Vessels. They have a 1-inch inside diameter and are offered in two different lengths with volumes of 22 and 45 mL. These vessels have a flat PTFE gasket or flexible graphite that is sealed with a screw cap. Special wrenches and bench sockets are offered for tightening these closures. The screw caps and bodies are made of alloy steel for use at temperatures to 300 °C. The maximum working pressure is 1700 psi (115 bar). The standard material of construction for these small, inexpensive vessels is Type 316 Stainless Steel, but they are also available in all of the current materials of construction Parr provides.

There is room for a single opening on the head of these vessels. This is generally an “A” socket which will accept a 4310 Gage Block Assembly. These heads can also be furnished with 1/8″ NPT, 1/4″ NPT, or a rupture disc assembly. Heads with an NPT port can be provided with a special fitting to allow mounting of both a needle valve and rupture disc, for use in ovens. See Parr 4700 These are the smallest of the Parr General Purpose Pressure Vessels. They have a 1-inch inside diameter and are offered in two different lengths with volumes of 22 and 45 mL.

These vessels have a flat PTFE gasket or flexible graphite that is sealed with a screw cap. Special wrenches and bench sockets are offered for tightening these closures. The screw caps and bodies are made of alloy steel for use at temperatures to 300 °C. The maximum working pressure is 1700 psi (115 bar). The standard material of construction for these small, inexpensive vessels is Type 316 Stainless Steel, but they are also available in all of the current materials of construction Parr provides. Vessels Vessels for Oven Use for more information. These vessels are normally heated in ovens, baths, or similar general purpose heating devices. Special heaters for these vessels are not available from Parr.
