Series 4760 100-600 ml General Purpose HP/HT pressure vessel

Overview
These are the most popular of the small general purpose vessels.  Parr offers a range of sizes large enough to work with significant sample sizes, yet small enough to handle with ease by all operators.  They are made in both fixed head and moveable vessel styles and are available with an FKM O-ring seal for operating temperatures to 225 °C, and FFKM O-ring for temperatures to 300 °C, or with a flat, PTFE gasket for operating temperatures up to 350 °C maximum.
Type
Genera Purpose Pressure Vessels
Stand
Bench Top Stand with Heater
Mounting Style
Moveable or Fixed Head
Vessel Sizes, ml
100-600mL (100, 160, 300, 450 & 600)
Maximum Pressure MAWP Rating, psi (bar)
3000 psi (200 bar)
Maximum operating temperature, deg C
225 °C with FKM O-ring
300 °C With FFKM O-ring
350 °C with PTFE Flat Gasket
Maximum Pressure MAWP Rating, psi (bar) for High Temperature
2000 psi (138 bar) for volumes 300, 450 and 600 ml only
High Temperature, deg C
500 °C with Flexible Graphite Flat Gasket (HT) for volumes
300, 450 and 600 ml only
Type
General Purpose Pressure vessels
Volume
100 to 600 ml
Maximum Pressure (MAWP)
3000 psi (200 bar)
Maximum Temperature
350 deg C
Mounting style
Moveable (or) Fixed head
Closure
Split Ring
Temperature Measurement
Fixed Thermocouple (or) Thermowell for special alloys
Maximum Head openings
Seven (depending on opening size and required fittings)
Description

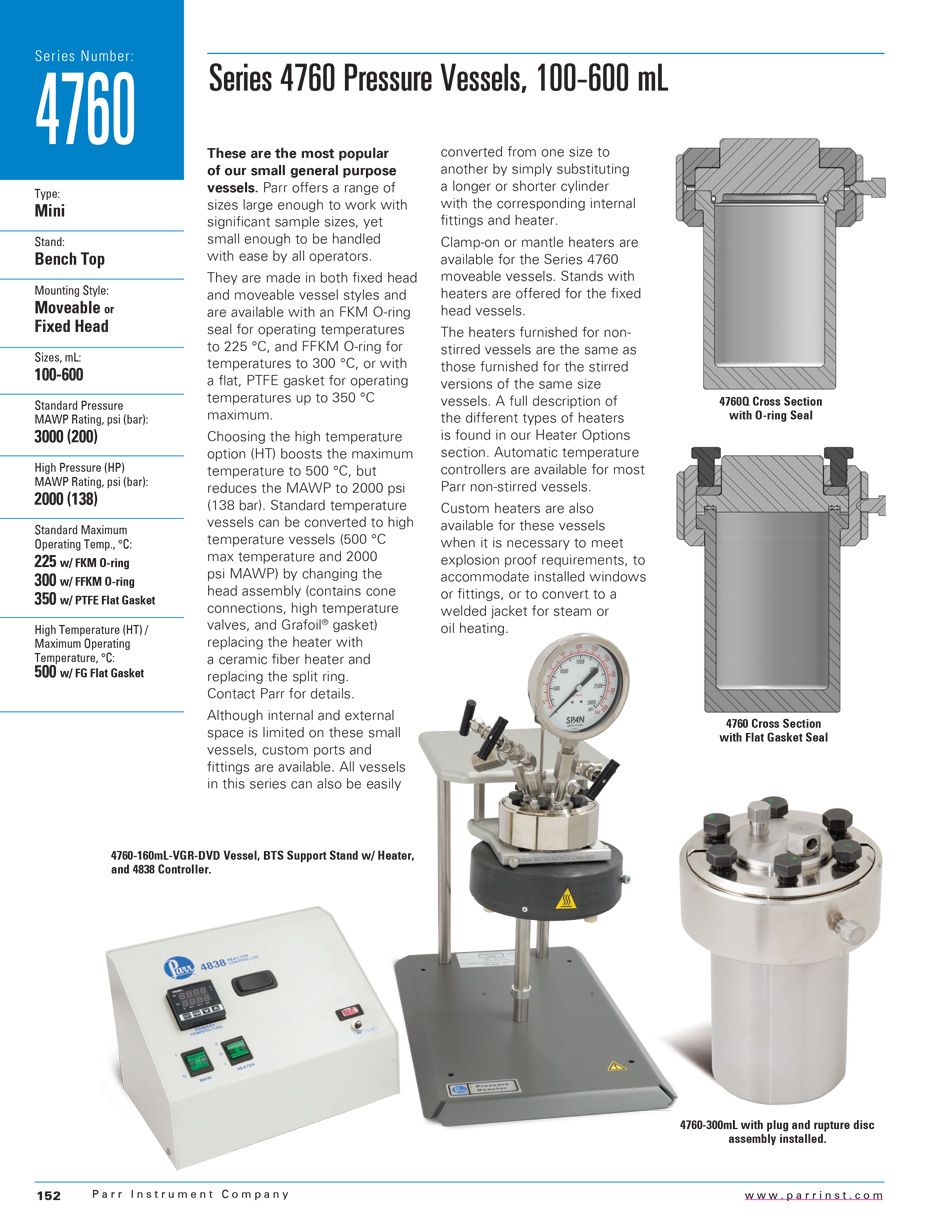

Series 4760 100-600 ml General Purpose HP/HT pressure vessel

  • These are the most popular of the small general purpose vessels.  Parr offers a range of sizes large enough to work with significant sample sizes, yet small enough to handle with ease by all operators.  They are made in both fixed head and moveable vessel styles and are available with an FKM O-ring seal for operating temperatures to 225 °C, and FFKM O-ring for temperatures to 300 °C, or with a flat, PTFE gasket for operating temperatures up to 350 °C maximum.
  • Choosing the high temperature option (HT) boosts the maximum temperature to 500 °C, but reduces the MAWP to 2000 psi (138 bar). Standard temperature vessels can be converted to high temperature vessels (500 °C max temperature and 2000 psi MAWP) by changing the head assembly (contains cone connections, high temperature valves, and grafoil gasket) replacing the heater with a ceramic fiber heater and replacing the split ring. Contact Parr for details.
  • Although internal and external space is limited on these small vessels, custom ports and fittings are available. All vessels in this series can also be easily converted from one size to another by simply substituting a longer or shorter cylinder with the corresponding internal fittings and heater.
  • Clamp-on or mantle heaters are available for the Series 4760 moveable vessels. Stands with heaters are offered for the fixed head vessels.
  • The heaters furnished for non-stirred vessels are the same as those furnished for the stirred versions of the same size vessels. A full description of the different types of heaters is found in our Heater Options section. Automatic temperature controllers are available for most Parr non-stirred vessels.
  • Custom heaters are also available for these vessels when it is necessary to meet explosion proof requirements, to accommodate installed windows or fittings, or to convert to a welded jacket for steam or oil heating.
Overview
These are the most popular of the small general purpose vessels.  Parr offers a range of sizes large enough to work with significant sample sizes, yet small enough to handle with ease by all operators.  They are made in both fixed head and moveable vessel styles and are available with an FKM O-ring seal for operating temperatures to 225 °C, and FFKM O-ring for temperatures to 300 °C, or with a flat, PTFE gasket for operating temperatures up to 350 °C maximum.
Type
Genera Purpose Pressure Vessels
Stand
Bench Top Stand with Heater
Mounting Style
Moveable or Fixed Head
Vessel Sizes, ml
100-600mL (100, 160, 300, 450 & 600)
Maximum Pressure MAWP Rating, psi (bar)
3000 psi (200 bar)
Maximum operating temperature, deg C
225 °C with FKM O-ring
300 °C With FFKM O-ring
350 °C with PTFE Flat Gasket
Maximum Pressure MAWP Rating, psi (bar) for High Temperature
2000 psi (138 bar) for volumes 300, 450 and 600 ml only
High Temperature, deg C
500 °C with Flexible Graphite Flat Gasket (HT) for volumes
300, 450 and 600 ml only
Type
General Purpose Pressure vessels
Volume
100 to 600 ml
Maximum Pressure (MAWP)
3000 psi (200 bar)
Maximum Temperature
350 deg C
Mounting style
Moveable (or) Fixed head
Closure
Split Ring
Temperature Measurement
Fixed Thermocouple (or) Thermowell for special alloys
Maximum Head openings
Seven (depending on opening size and required fittings)
Description

Series 4760 100-600 ml General Purpose HP/HT pressure vessel

These are the most popular of the small general purpose vessels.  Parr offers a range of sizes large enough to work with significant sample sizes, yet small enough to handle with ease by all operators.  They are made in both fixed head and moveable vessel styles and are available with an FKM O-ring seal for operating temperatures to 225 °C, and FFKM O-ring for temperatures to 300 °C, or with a flat, PTFE gasket for operating temperatures up to 350 °C maximum.

Choosing the high temperature option (HT) boosts the maximum temperature to 500 °C, but reduces the MAWP to 2000 psi (138 bar). Standard temperature vessels can be converted to high temperature vessels (500 °C max temperature and 2000 psi MAWP) by changing the head assembly (contains cone connections, high temperature valves, and grafoil gasket) replacing the heater with a ceramic fiber heater and replacing the split ring. Contact Parr for details.

Although internal and external space is limited on these small vessels, custom ports and fittings are available. All vessels in this series can also be easily converted from one size to another by simply substituting a longer or shorter cylinder with the corresponding internal fittings and heater.

Clamp-on or mantle heaters are available for the Series 4760 moveable vessels. Stands with heaters are offered for the fixed head vessels. The heaters furnished for non-stirred vessels are the same as those furnished for the stirred versions of the same size vessels. A full description of the different types of heaters is found in our Heater Options section. Automatic temperature controllers are available for most Parr non-stirred vessels. Custom heaters are also available for these vessels when it is necessary to meet explosion proof requirements, to accommodate installed windows or fittings, or to convert to a welded jacket for steam or oil heating.
